Configuring JMeter for ASP.Net Sites

Comparing different web sites running the same ASP.Net application, my idea was to use JMeter to perform a couple of requests and display the execution times for the requests per site.

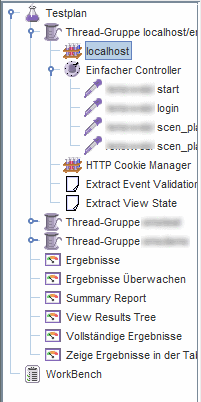

A web test is called Test Plan in JMeter, and in the most basic version looks like this:

The test plan has a Thread Group which defines how often a sequence of steps is performed, and how many threads are used to execute the sequence.

Use a HTTP Request Defaults configuration element to define server name, port number and other connection parameters.

Under the Simple Controller (under Logic Controllers) to contain the sequence of steps, consisting of HTTP Request or HTTP Request HTTPClient elements (under the Samplers menu). Each of them contains the URL Path (everything after the host name) and optionally a couple of parameters.

Next, add a couple of Listeners, such as Summary Report, View Results Tree and View Results in Table to display the requests’ performance data.

While this would be sufficient for non-ASP.Net web sites, ASP.Net requires a couple more elements.

First, the HTTP Cookie Manager is required to store the ASP.Net session cookie. Simply add it as config element.

Next, the various hidden variables of ASP.Net need to be parsed and posted. For example, a POST requires that the __VIEWSTATE variable is posted as well, otherwise ASP.Net would not be able to perform its magic.

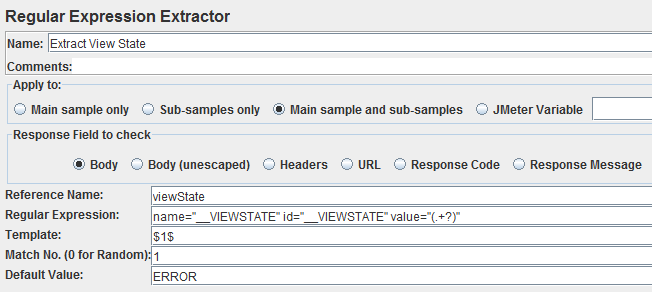

To achieve this, we need a Regular Expression Extractor (post processor) to extract the value of the __VIEWSTATE variable in the original page:

Set the reference name to viewState (or any name you prefer and find reasonable), and the regular expression to

name="__VIEWSTATE" id="__VIEWSTATE" value="(.+?)"

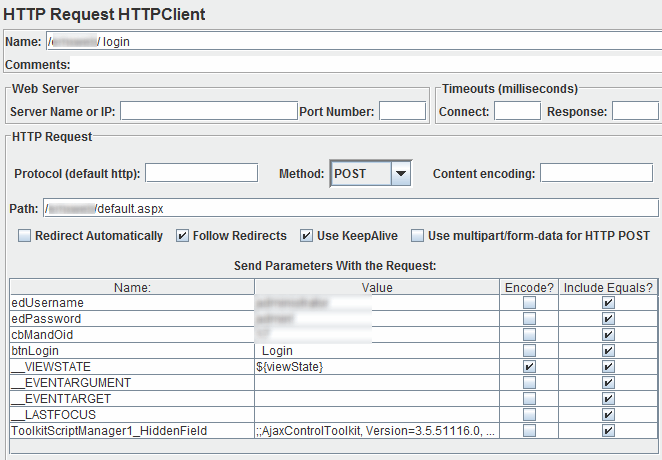

In the login example below, we must first GET the login page, the RegEx extractor will retrieve the view state, which is then posted using the ${viewState} macro notation to pass its value on:

If you use the Ajax Control Toolkit, you may also need to pass the ScriptManager’s hidden value. Hit F12 in your browser, enable request logging (Net, All in Firefox; Network in Chrome), and find the posted value in the Request data.

Thanks to the pages that helped me with the information I needed: Technically Works, and a couple of answers on StackOverflow.

One Response to Configuring JMeter for ASP.Net Sites

  1. glinius says:

    ASP.NET Enterprise applications are often protected with Basic, NTLM or Kerberos Authentication so I guess that using HTTP Authorization Manager to bypass authentication challenge should also be highlighted.

    See Windows Authentication with Apache JMeter guide for detailed walkthrough on handling above authentication types in JMeter.
